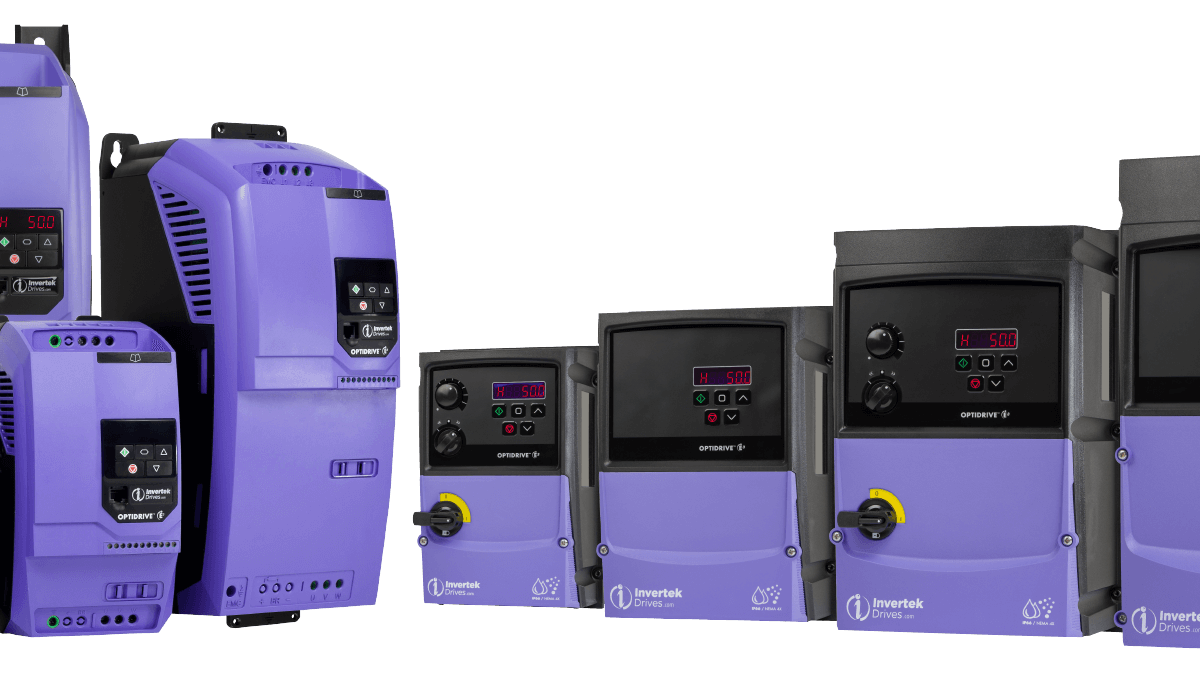

Compact, reliable and easy to use. Simply power on and Optidrive E3 is up and running, providing precise motor control and energy savings using the factory settings.

Optidrive E3 Features

Innovative technology, reliability, robustness and ease of use in a range of compact IP20 & IP66 enclosures.

Simple Commissioning
14 parameter basic setup. Default settings suitable for most applications. Contactor style connection for simple wiring.

Up to 50 parameters available in total for a highly flexible performance.

Intuitive Keypad Control
Precise digital control at the touch of a button.

Application Macros
Switch between Industrial, Pump & Fan modes to optimise Optidrive E3 for your application.

Internal Category C1 EMC Filter
An internal filter in every Optidrive E3 saves cost and time for installation.

Cat C1 according to EN61800-3:2004

Sensorless Vector Control for all Motor Types

• Induction Motors (IM)
• Permanent Magnet Motors (PM)
• Brushless DC Motors (BLDC)
• Synchronous Reluctance Motors (SynRM)
• Line Start PM Motor (LSPM)

Options & Software
A range of external EMC filters, brake resistors, input chokes and output filters are available.

Optistick Smart Compatible
Rapid commissioning tool.
